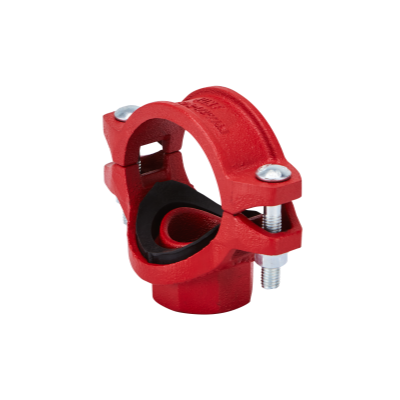

메카니칼 티(나사식)

가격문의(상세정보 참조)

Nominal Size A	Pipe O.D mm	Working Pressure / Mpa	Bolt Size	Dimensions mm				Hole Dia
Nominal Size A	Pipe O.D mm	Working Pressure / Mpa	mm	Ø	L	K	H	1.6
50*25	60.5*34	2.07	M10*60	81	116	55	62	38
50*32	60.5*42.7		M10*60	81	116	55	68	46
50*40	60.5*48.6		M10*60	81	116	55	68	46
65*25	76.3*34		M10*60	98	137	65	69	38
65*32	76.3*42.7		M10*60	98	137	65	76	46
65*40	76.3*48.6		M10*60	98	137	65	82	53
80*25	89.1*34		M10*60	113	146	75	69	38
80*32	89.1*42.7		M10*60	113	146	75	76	46
80*40	89.1*48.6		M10*60	113	146	75	82	53
80*50	89.1*60.5		M10*60	113	146	75	91	61
100*25	114.3*34		M12*75	138	176	83	70	38
100*32	114.3*42.7		M12*75	138	176	85	77	46
100*40	114348.6		M12*75	138	176	85	83	53
100*50	114.3*60.5		M12*75	138	176	85	92	61
100*65	114.3*76.3		M12*75	138	176	85	112	81
125*25	139.8*34		M12*75	164	206	98	70	38
125*32	139.8*42.7		M12*75	164	206	98	77	46
125*40	139.8*48.6		M12*75	164	206	98	83	53
125*50	139.8*60.5		M12*75	164	206	98	92	61
125*65	139.8*76.3		M12*75	164	206	98	112	81
150*25	165.2*34		M12*75	189	226	113	70	38
150*32	165.2*42.7		M12*75	189	226	113	77	46
150*40	165248.6		M12*75	189	226	113	83	53
150*50	165.2*60.5		M12*75	189	226	113	92	61
150*65	165.2*76.3		M12*75	189	226	113	112	81
