| FLUID TEMPERATURE (℃) | RANGE OF CORROSION RESISTANCE | ||||||||||||||||
| -40 | -20 | -10 | 60 | 90 | 100 | 105 | 120~140 | WEAK ACID | STRONG ACID | OXIDATIVE ACID | MIXED ACID | WEAK ALKALI | STRONG ALKALI | ORGANIC ALKALI | EROSIVE ALKALI | ||
| NATURAL RUBBER | ▽ | ○ | ○ | ▽ | X | X | X | X | ○ | X | X | X | ○ | ▽ | X | ▽ | |
| SYNTHETIC RUBBER | CR, NBR | ▽ | ○ | ○ | ○ | X | X | X | X | ○ | ▽ | X | ▽ | ○ | ○ | ▽ | ▽ |
| EPDM, FPM | ○ | ○ | ○ | ○ | ○ | ▽ | X | X | ○ | ▽ | ▽ | ○ | ○ | ○ | ▽ | ▽ | |
| PTFE | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
※ ○ : USABLE ▽ : ACCORDING TO CIRCUMSTANCE X : UNFIT

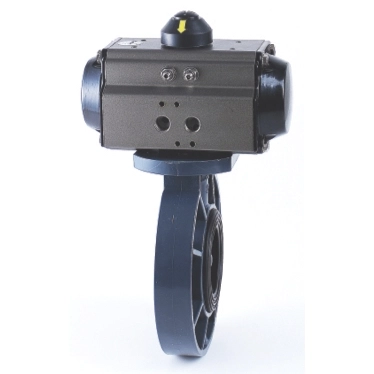

| VALVE SIZE | 50A - 400A |
| ACTUATOR TYPE | DOUBLE ACTING / SINGLE ACTING |
| OPERATING MEDIA | COMPRESSED DRY AIR |
| OPERATING PRESSURE | 4 - 7 Kg/㎠ |
| ROTATING ANGLE | 90° ± 5° |
| FLUID TEMPERATURE | -10℃ ~90℃(-40℃ ~ 140℃) |
| RATING | JIS 10K / ANSI150# |
| BODY MATERIAL | PVC, PP, PPG, C-PVC, PVDF |
| ACCESSORY | SOLENOID VALVE, AIR-FILTER REGULATOR, LIMIT SWITCH BOX, E/P POSITIONER |
| MODEL | SIZE | A | A1 | H (Approx) | L | END CONNECTION (JIS 10K WAFER) | |||||
| DOUBLE | SINGLE | mm | Inch | Ø d | Ø D | Ø C | N-Ø H | ||||
| TGK-50P-BT-D | TGK-50P-BT-S | 50A | 2 | 168 | 83 | 284 | 42 | 59 | 165 | 120 | 4-19 |
| TGK-65P-BT-D | TGK-65P-BT-S | 65A | 2-1/2 | 168 | 83 | 298 | 46 | 70 | 185 | 140 | 4-19 |
| TGK-80P-BT-D | TGK-80P-BT-S | 80A | 3 | 219 | 96 | 338 | 46 | 79 | 200 | 150 | 8-19 |
| TGK-100P-BT-D | TGK-100P-BT-S | 100A | 4 | 219 | 96 | 363 | 56 | 103 | 229 | 175 | 8-19 |
| TGK-125P-BT-D | TGK-125P-BT-S | 125A | 5 | 274 | 122 | 411 | 66 | 130 | 254 | 210 | 8-23 |
| TGK-150P-BT-D | TGK-150P-BT-S | 150A | 6 | 274 | 122 | 438 | 73 | 151 | 285 | 240 | 8-23 |
| TGK-200P-BT-D | TGK-200P-BT-S | 200A | 8 | 354 | 150 | 558 | 94 | 203 | 340 | 290 | 12-23 |
| TGK-250P-BT-D | TGK-250P-BT-S | 250A | 10 | 354 | 150 | 660 | 111 | 255 | 406 | 355 | 12-25 |
| TGK-300P-BT-D | TGK-300P-BT-S | 300A | 12 | 417 | 170 | 747 | 131 | 311 | 484 | 400 | 16-25 |
| TGK-350P-BT-D | TGK-350P-BT-S | 350A | 14 | 452 | 185 | 771 | 134 | 348 | 520 | 445 | 16-25 |
| TGK-400P-BT-D | TGK-400P-BT-S | 400A | 16 | 600 | 236 | 932 | 174 | 398 | 600 | 510 | 16-27 |
