| VALVE SIZE | 50A - 500A |
| ACTUATOR MODEL | AKGK SERIES |
| ACTUATOR TYPE | DOUBLE ACTING CYLINDER |
| OPERATING MEDIA | COMPRESSED DRY AIR |
| OPERATING PRESSURE | 4 - 7 kg/㎠ |
| FLUID TEMPERATURE | -40℃ - 120℃ |
| RATING | JIS 10K. ANSI 150# |
| BODY MATERIAL | SCS13, FCD45 |
| ACCESSORY | SOLENOID VALVE, LIMIT SWITCH, AIR FILTER & REGULATOR, SPEED CONTROLLER, E/P POSITIONER, MANUAL HANDLE |

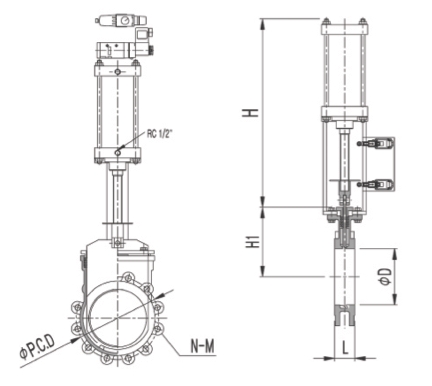

| MODEL | SIZE | H1 | H (Approx) | L | Ø d | Ø P.C.D | N-M | |
| mm | Inch | |||||||
| TGK-50-KG | 50 | 2" | 99 | 523 | 48 | 58 | 120 | 4-M16 |
| TGK-80-KG | 80 | 3" | 120 | 568 | 51 | 75 | 150 | 8-M16 |
| TGK-100-KG | 100 | 4" | 145 | 644 | 51 | 115 | 175 | 8-M16 |
| TGK-150-KG | 150 | 6" | 175 | 750 | 57 | 167 | 240 | 8-M20 |
| TGK-200-KG | 200 | 8" | 218 | 923 | 70 | 212 | 290 | 12-M20 |
| TGK-250-KG | 250 | 10" | 270 | 1132 | 70 | 276 | 355 | 12-M22 |
| TGK-300-KG | 300 | 12" | 310 | 1303 | 76 | 316 | 400 | 12-M22 |
| TGK-350-KG | 350 | 14" | 340 | 1430 | 76 | 347 | 445 | 16-M22 |
| TGK-400-KG | 400 | 16" | 400 | 1633 | 89 | 397 | 510 | 16-M22 |
| TGK-450-KG | 450 | 18" | 445 | 1809 | 89 | 470 | 565 | 16-M24 |
| TGK-500-KG | 500 | 20" | 495 | 1965 | 114 | 499 | 620 | 20-M24 |
